Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko


Flo-Master XP3 ce





the power behind the performance of your spa



The Flo-Master XP3 ce pumps are designed for today's larger spas with multiple jets requiring increased flow and provides optimal performance through efficiency rather than brute force.

Ideal for swim spas and high-flow requirements:

  • Booster jet pumps
  • Single or Dual-speed
  • Power: 2.5 HP or 3 HP (3 HP available in single speed only)
  • Flow rate up to 1325 LPM
  • 90 mm frame motor
  • 2.5 " intake and discharge

Easily customizable to fit your needs:

  • High flow rate
  • Discharge can be oriented on 4 positions
  • Fits all requirements
  • Many options for the drain plug
  • Different types of power cables possible according to your spa controls
  • IPX5 approved
  • TUV & CE certified

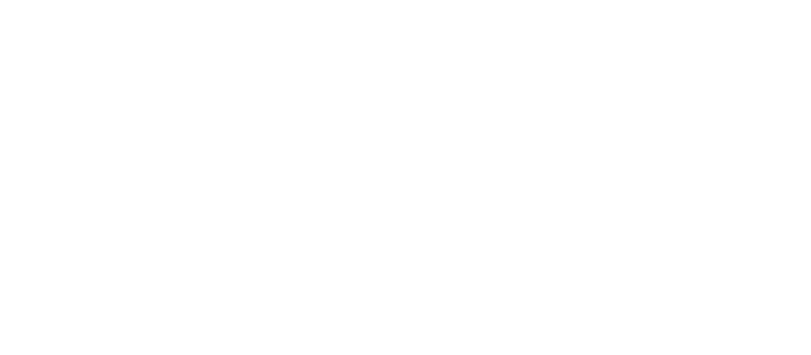

dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP3 ce configuration illustrated above.


XP3 CE customization variables

  • Speeds: 1 or 2
  • HP: 2, 2.5 or 3
  • Volts: 220-240
  • HZ: 50
  • Frame: 80 or 90 mm
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 1.25, 1.5, 1.75, 2.5 or 3 meters
  • Connectors: QC, QCF, AMP, or in.link
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2.5 inches
  • Water out: 2.5 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2.5"
  • Packaging: individual box or pallet

performance chart



Note that data results may slightly vary depending on components selection.




Note that data results may slightly vary depending on components selection.
