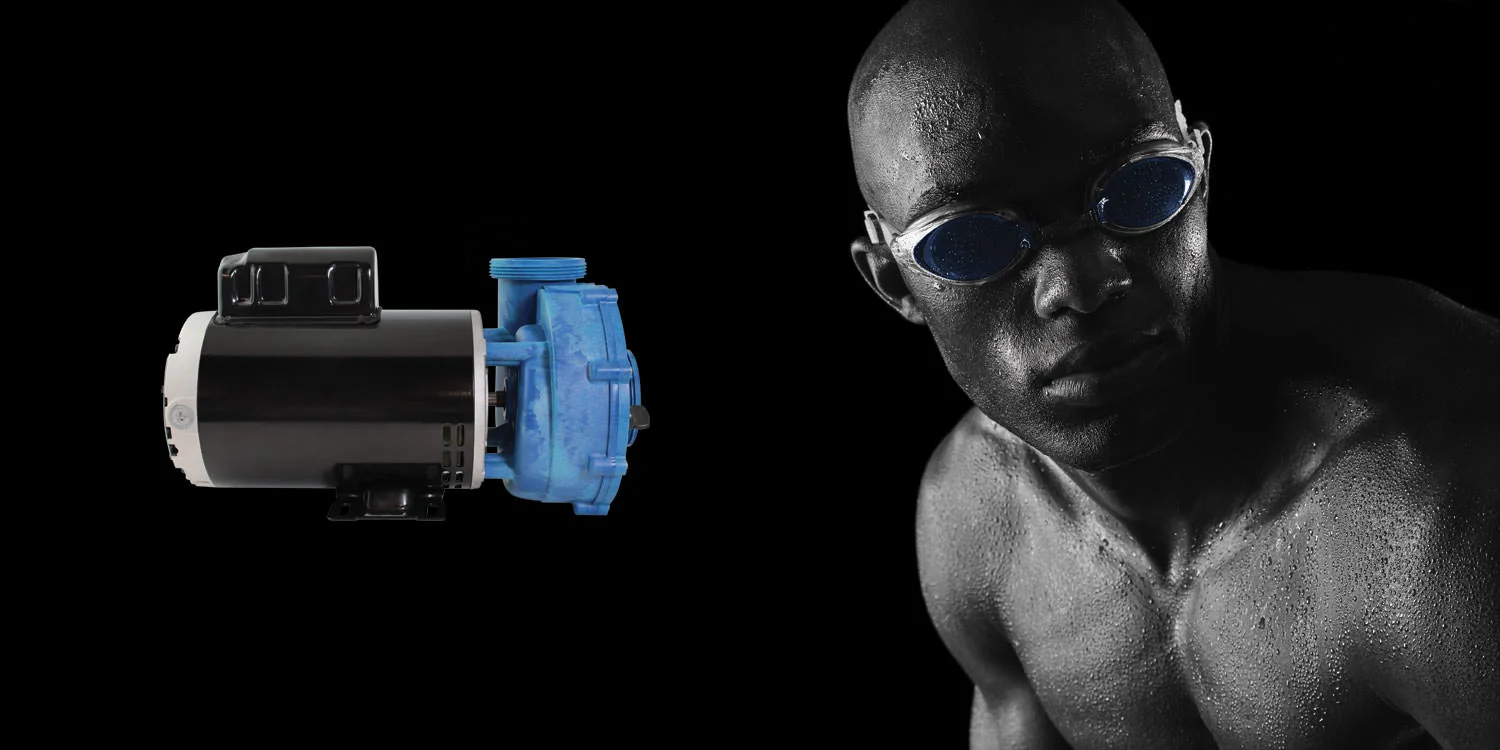

Flo-Master XP3


The power behind the performance of your spa


The Flo-Master XP3 pumps are designed for today's larger spas with multiple jets requiring increased flow and provides optimal performance through efficiency rather than brute force.

Ideal for swim spas and spas with high-flow requirements:

  • Booster jet pumps
  • Single or dual-speed
  • Power: 2.5 HP, 3 HP, 4 HP
  • Flow rate up to 400 GPM
  • 56 frame motor
  • 2.5 " intake and discharge
  • High flow rate

Easily customizable to fit your needs:

  • Discharge can be oriented on 4 positions
  • Fits all requirements
  • Many options for the drain plug
  • Different types of power cables possible according to your spa controls
  • Open drip proof
  • Fittings included
  • cULus or cURus certified


Note that dimensions may slightly vary depending on components selection. Biggest XP3 configuration illustrated above.

XP3 customization variables

  • Speeds: 1 or 2
  • HP: 2.5, 3 or 4
  • Volts: 230
  • HZ: 60
  • Frame: 48 (except 4hp) or 56
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP or
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2.5 inches
  • Water out: 2.5 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2.5"
  • Packaging: individual box or pallet

performance chart


Note that data results may slightly vary depending on components selection.
