Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko


XP2-LE





Familiar body! Different beast!



Think about a jet pump and a circulation pump, in a single body… that’s the new Aqua-Flo by Gecko XP2-LE pump! Our new pump is easy to install and is the best single pump solution for spa models needing a two-speed pump and a filtration pump.

An all-in-one pump with the performance and the efficiency you want!!

All-in-one pump

  • Low-energy consumption
  • Great performance at high speed
  • Less time of filtration per day than a CP
  • Less expensive than regular 2-speed pumps



Standard configuration

  • Amp Cord 8’
  • Blue wet end
  • Viton Seal
  • Discharge R0 12 O’clock
  • Drain plug 6 O’Clock
  • Available in 3 HP and 3.5 HP
  • Best quality all copper winding motor
  • Better heat resistant

XP2-LE comparative chart

Comparison data

Water size
330 gal

Water turn
51 times / day

0.15$/kwh


Circulation pump

Filtration / day
8hrs

Current
0.7 A

71$ / yr


Std 2 speed pump

Filtration / day
4hrs

Current
4.4 A

222$ / yr


XP2-LE  (3hp config)

Filtration / day
6.1hrs

Current
0.95 A

73$ / yr


dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP2-LE configuration illustrated above.


XP2-LE customization variables

  • Speeds: 2
  • HP: 3 or 3.5
  • Volts: 230
  • HZ: 60
  • Frame: 56
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP or in.link
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2 inches
  • Water out: 2 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2"
  • Packaging: individual box or pallet

performance chart & documentation



XP2-le promotional flyer:

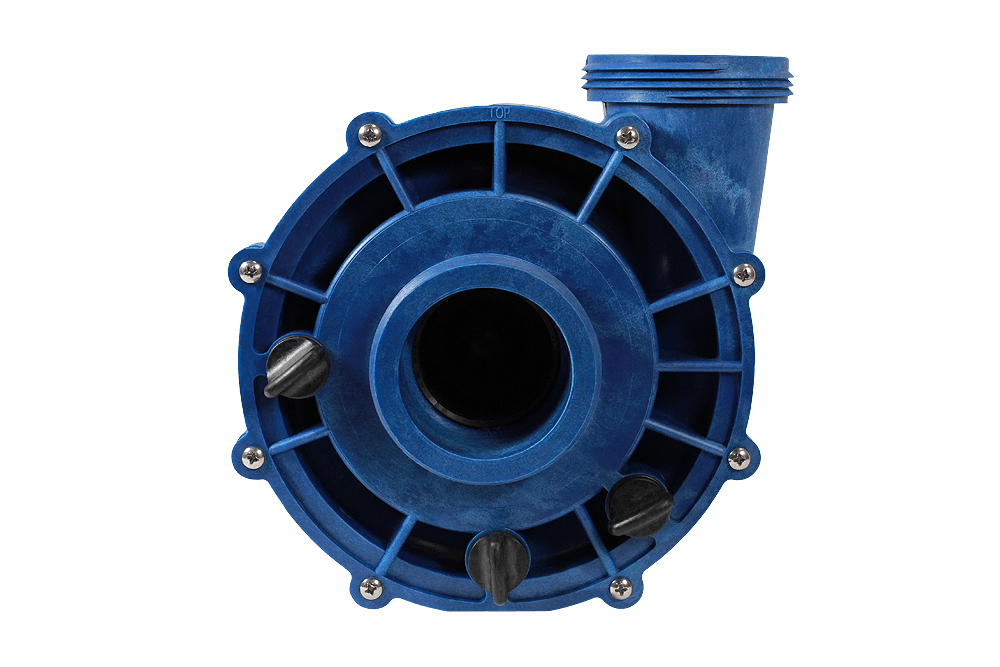

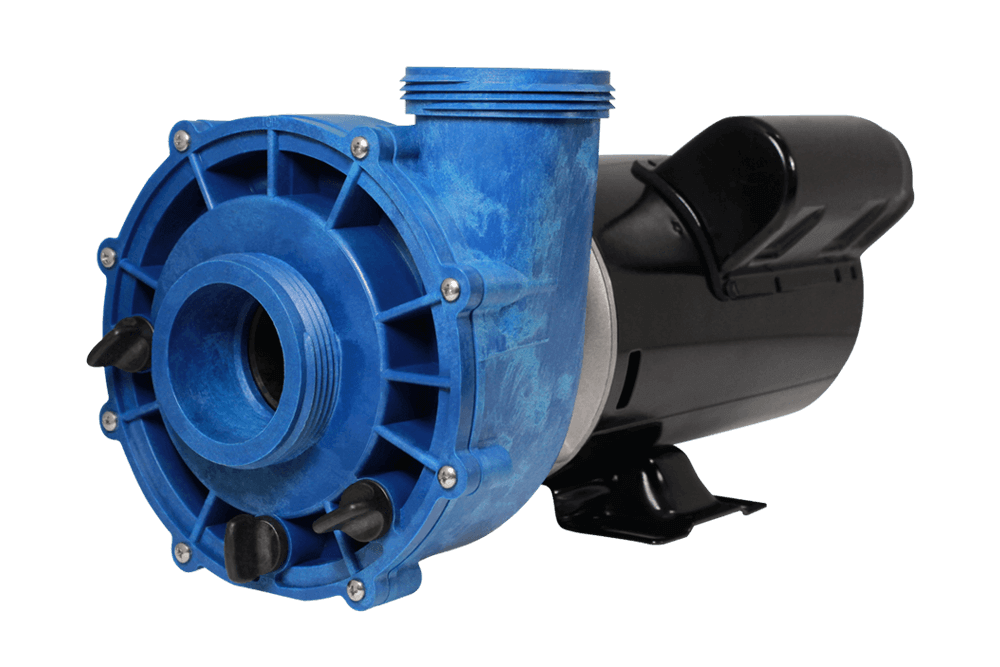

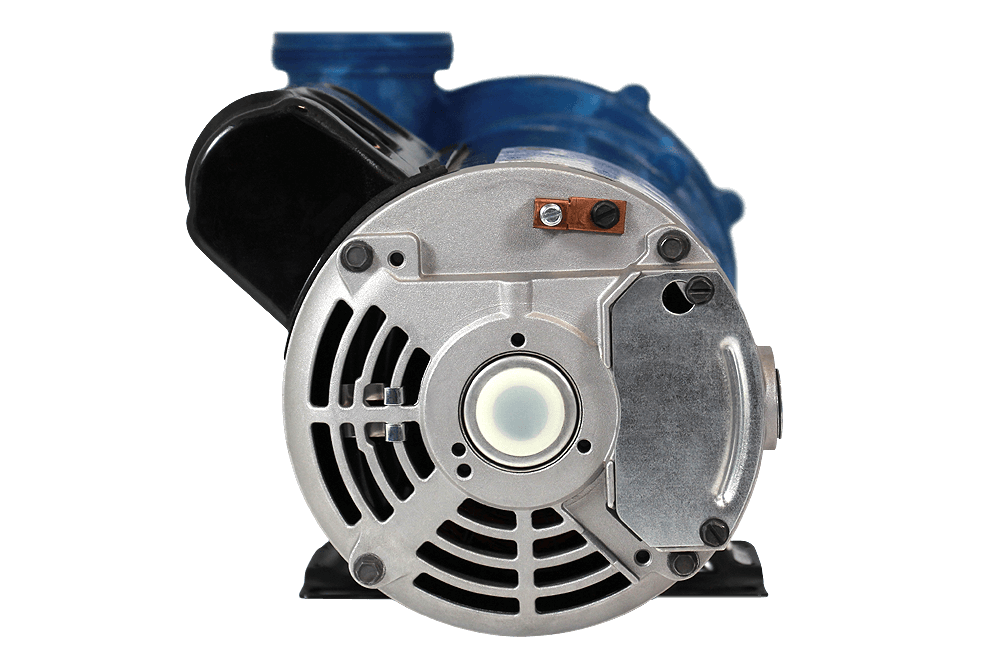

Flo-Master XP2




high performance pump

The Flo-Master XP2 outperform any other 48 frame pumps. With a shut-off head of more than traditional 48 frame pumps, they are perfect for all types of spas.
Enjoy the same performance as if it was a 56 frame pumps!

Great flow, high pressure:

  • Booster jet pumps
  • Single or Dual-speed
  • Flow rate up to 225 GPM
  • Power: 1 HP, 1.5 HP, 2 HP, 2.5 HP, 3 HP,
  • 48 or 56 frame motor
  • 2" intake and discharge
  • 115 or 230 volts

Easily customizable to fit your needs:

  • Discharge can be oriented on 4 positions
  • Many options for the drain plug
  • Choice of wet-end colors
  • Many type of power cables available
  • Various compression fitting configurations
  • Open drip proof
  • cULus or cURus certified

dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP2 configuration illustrated above.


XP2 customization variables

  • Speeds: 1 or 2
  • HP: 1, 1.5, 2, 2.5, 3 or 4
  • Volts: 115 or 230
  • HZ: 60
  • Frame: 48 or 56
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP, in.link or Nema
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2 inches
  • Water out: 2 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2"
  • Packaging: individual box or pallet

performance chart


Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.
