The XP2 ce : Ideal for high-flow requirements

Contact Us

Want to know more about Aqua-Flo by Gecko pumps for spas and hot tubs?

Just fill in and submit this form. We'll quickly get back to you.



450 Rue des Canetons
Québec, QC, G2E 5W6
Canada

Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko


Flo-Master XP2e ce





greater flow-rates with overall energy efficiency



Aqua-Flo by Gecko's XP2e ce pumps provide greater flow than their XP2 ce sister models allowing spas to use more jets per pump, increasing the features and benefits offered to customers.

Ideal for high-flow requirements:

  • Booster jet pumps
  • Single or Dual-speed
  • Power: 1.5 HP, 2 HP, 2.5 HP, 3 HP
  • Flow rate up to 800 LPM
  • 80 or 90 mm frame motor
  • 2" intake and discharge or 2.5'' intake and 2'' discharge
  • 230 V, 50 Hz,

Easily customizable to fit your needs:

  • Discharge can be oriented on 4 positions
  • Fits all requirements
  • Many options for the drain plug
  • Color can be customized
  • Many power cables available according to your spa controls
  • Many options for the compression fitting configuration
  • IPX5 approved
  • TUV & CE certified

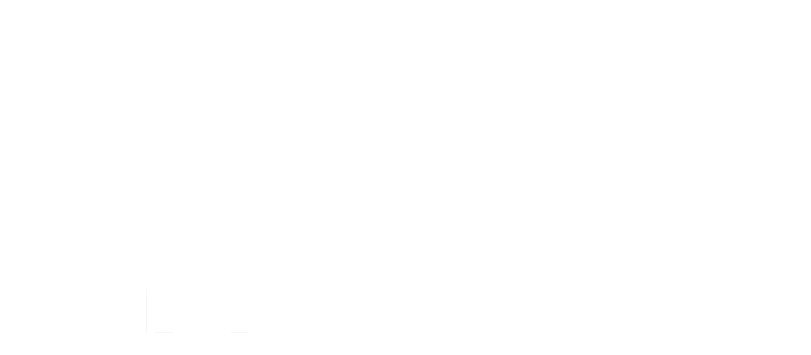

dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP2e ce configuration illustrated above.


XP2e CE customization variables

  • Speeds: 1 or 2
  • HP: 1.5, 2, 2.5 or 3
  • Volts: 220 - 240
  • HZ: 50
  • Frame: 80 or 90 mm
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 1.25, 1.5, 1.75, 2.5 or 3 meters
  • Connectors: QC, QCF, AMP or in.link
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2 or 2.5 inches
  • Water out: 2 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2" or 1 x 2" and 1 x 2.5"
  • Packaging: individual box or pallet

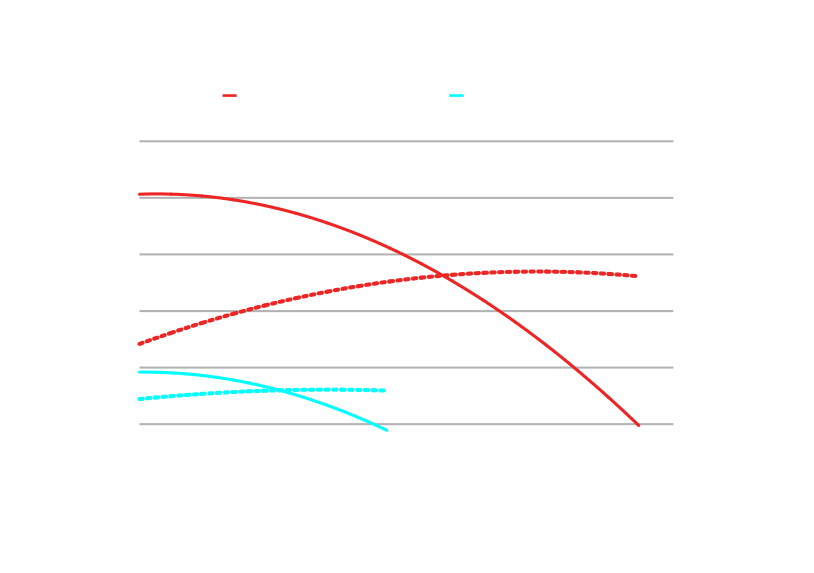

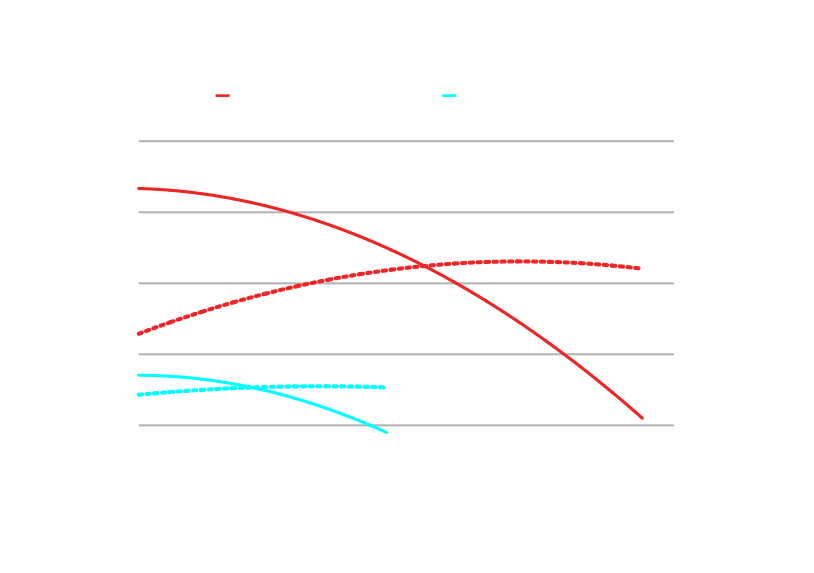

performance chart



Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.
