Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko

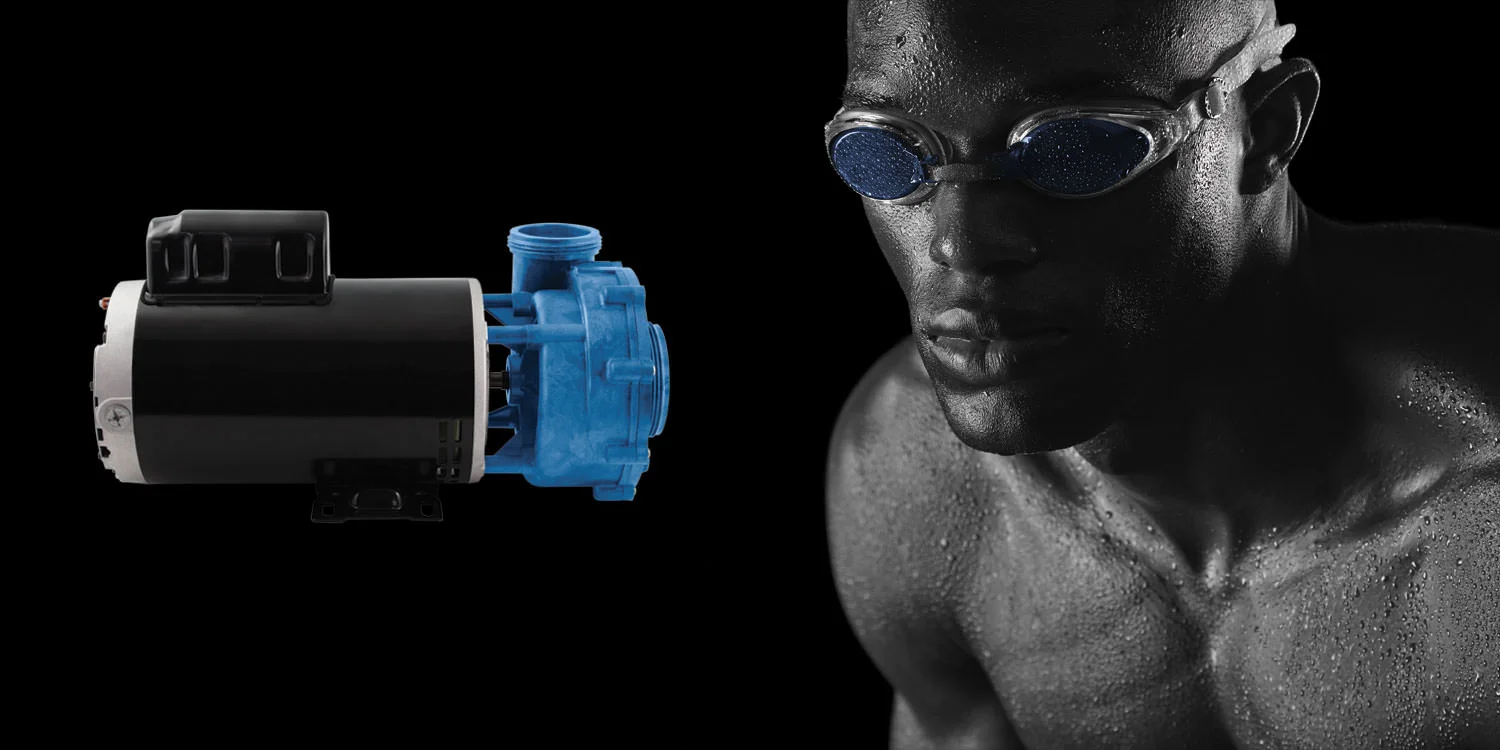

Flo-Master XP2e





greater flow-rates with overall energy efficiency



Aqua-Flo by Gecko's XP2e pump provides greater flow than its XP2 sister model allowing spas to use more jets per pump, increasing the features and benefits offered to customers.

Ideal for multi-jet spa applications:

  • Booster jet pumps
  • Single or Dual-speed
  • Power: 1.5 HP, 2 HP, 2.5 HP, 3 HP, 4 HP,
  • Flow rate up to 280 GPM
  • 48 or 56 frame motor
  • 2" intake and discharge or 2.5'' intake and 2'' discharge

Easily customizable to fit your needs:

  • Discharge can be oriented on 4 positions
  • Many options for the drain plug
  • Choice of wet-end colors
  • Many types of power cables available
  • Various compression fitting configurations
  • Open drip proof
  • cULus or cURus certified

dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP2e configuration illustrated above.


XP2e customization variables

  • Speeds: 1 or 2
  • HP: 1.5, 2, 2.5, 3 or 4
  • Volts: 230
  • HZ: 60
  • Frame: 48 (except 4 hp) or 56
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP, in.link or Nema
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 2 or 2.5 inches
  • Water out: 2 inches
  • Drain plugs: DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2" ou 1 x 2" & 1 x 2.5"
  • Packaging: individual box or pallet

performance chart



Note that data results may slightly vary depending on components selection.
