Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko


XP2 bl ce





renowned design and efficiency with bulletproof components



New environmentally friendly Flo-Master’s XP2 bl ce pumps can be easily customized and calibrated to optimize performance and enhanced energy efficiency of all the spas they power.

Great flow, high pressure:

  • Booster jet pumps

  • Single speed

  • Flow rate up to 852 LPM (225 GPM)

  • 80 mm frame motor

  • 2" intake and discharge

  • Power: 2 HP, 2.5 HP, 3 HP

Made to measure:

  • Can be oriented on 4 positions

  • Fits all requirements

  • Many options for the drain plug

  • Color can be customized

  • Many power cables available according to your spa controls

  • Many options for the compression fitting configuration

  • IPX5 approved

  • TUV & CE certified


dimensions

Note that dimensions may slightly vary depending on components selection. Biggest XP2 ce configuration illustrated above.


XP2 bl ce customization variables

  • Seals: Viton, EPDM, Universeal

  • Wet end colors: black, blue, green, red

  • Water in: 2 inches

  • Water out: 2 inches

  • Drain plugs: DP wing, Barb 3/8, Barb 1/4

  • Fittings: 2 x 2"

  • Packaging: individual box or pallet

  • Speed: 1

  • HP: 2 or 2.5

  • Volts: 220 - 240

  • HZ: 50

  • Frame: 80

  • Water discharge location: top, right side, bottom or left side

  • Cable length: 1.25, 1.5, 1.75, 2.5 or 3 meters

  • Connectors: QCF (Quick connector right angle), QC (Quick connect), AMP or in.link

Contact our pump team for customization suggestions

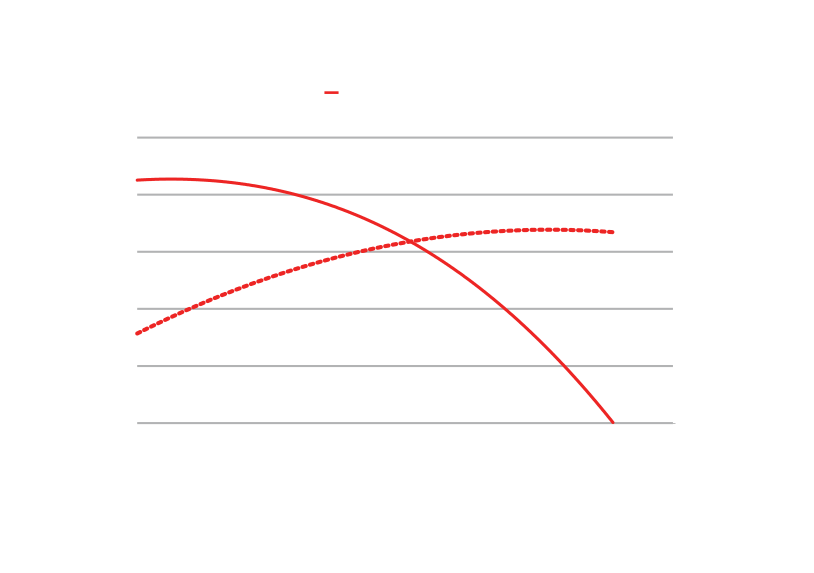

performance chart


Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.

Note that data results may slightly vary depending on components selection.
