Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko

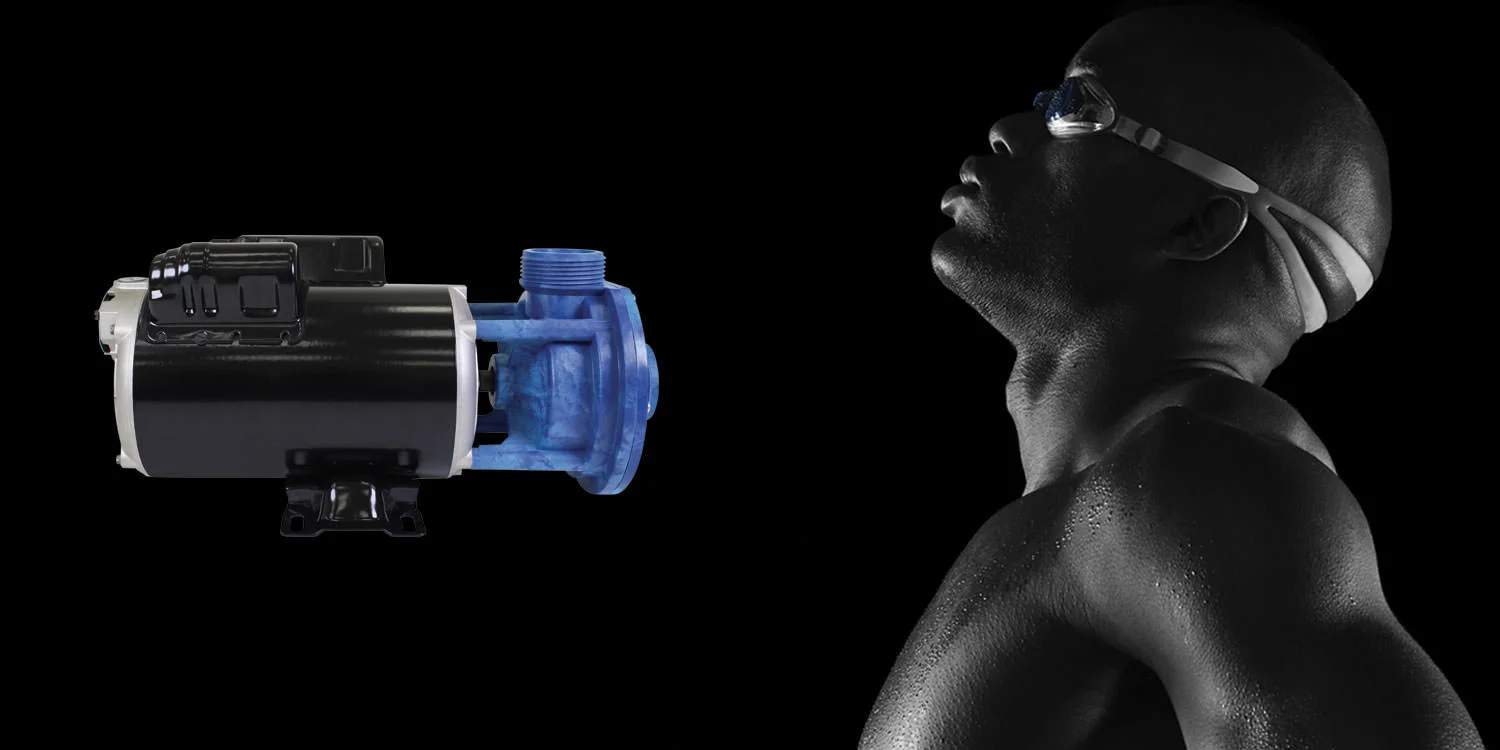

Flo-Master FMHP & FMCP





high performance pumps for portable spas and hot tubs



Cost-effective Flo-Master hp/cp pumps are designed with a unique, high-performance impeller providing flow rates that exceed all tested competition. The perfect choice for entry-level and mid-range spas requiring greater output.

Ideal for entry-level and mid-range spas

  • Booster jet pumps
  • Single or dual-speed
  • Flow rate up to 150 GPM
  • 48 frame motor
  • 1 ½ " intake and discharge
  • Ideal for small spas
  • 115 or 230 volts
  • Power: 1 HP, 1.5 HP, 2 HP.

Easily customizable to fit your needs

  • Wet end with centered or side discharge
  • Optional adapter with 2" compression fitting
  • Compact
  • Many options for the drain plug
  • cURul or cURus certified

FMHP dimensions

Note that dimensions may slightly vary depending on components selection. Biggest FMHP configuration illustrated above.

FMHP customization variables

  • Speeds: 1 or 2
  • HP: 0.75, 1, 1.5 or 2
  • Volts: 115 or 230
  • HZ: 60
  • Frame: 48
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP, in.link or Nema
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 1.5 inches
  • Water out: 1.5 inches
  • Drain plugs: DP hex, DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 1.5" or 2 x 2" (with adaptors)
  • Packaging: individual box or pallet

Contact our pump team for customization suggestions


FMCP dimensions

Note that dimensions may slightly vary depending on components selection. Biggest FMCP configuration illustrated above.

FMCP customization variables

  • Speeds: 1 or 2
  • HP: 0.75, 1, 1.5 or 2
  • Volts: 115 or 230
  • HZ: 60
  • Frame: 48
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP, in.link or Nema
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 1.5 inches
  • Water out: 1.5 inches
  • Drain plugs: DP hex, DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 1.5" or 2 x 2" (with adaptors)
  • Packaging: individual box or pallet

performance chart



Note that data results may slightly vary depending on components selection.
