Discover all Gecko pumps for spas and hot tubs with our line aqua-flo by Gecko

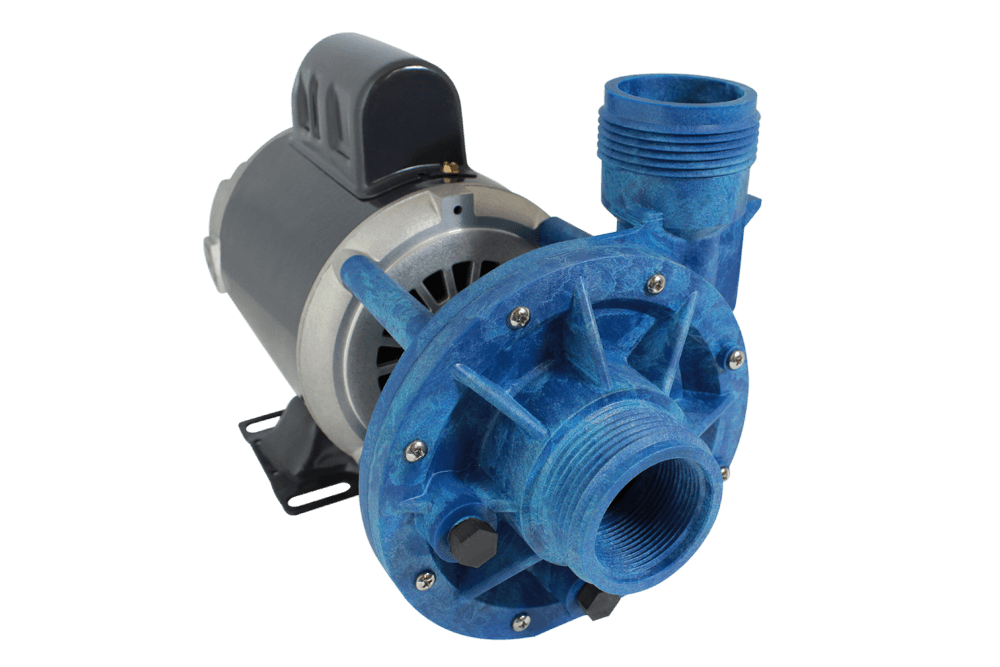

Circ-Master CMXP





smart design, cool runnings
and the highest gpm of any recirculation pump in the spa industry



Aqua-Flo by Gecko's CMXP pump takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump in the spa industry.

Smart design, cool runnings, new cmxp pumps feature increased filtration efficiency, greater flow to heater and compact design for continuous duty operation.

Increase filtration efficiency:

  • Higher flow rate for quicker more efficient filtration
  • Optimized water circulation
  • More filtration at a lesser cost

Greater flow to heater:

  • Maximized heater efficiency
  • Extended heater lifetime
  • Better heater protection

Smart and compact design:

  • Design for continuous duty operation
  • Carbon-graphite self-lubricating seal (UniverSeal)
  • Built-in external fan
  • Sealed motor IPx5
  • 230 V, 60 Hz, 48 frame motor
  • Quiet operation
  • Side discharge
  • 2 inch inlet & outlet
  • High volume volute
  • Multiple drain location (optional barbed fitting)
  • 8 feet cord with AMP connector
  • Cooler operation
  • cULus or cURus certified

dimensions

Note that dimensions may slightly vary depending on components selection. Biggest CMXP configuration illustrated above.


CMXP customization variables

  • Speeds: 1
  • HP: 1/15
  • Volts: 230
  • HZ: 60
  • Frame: 48
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP or in.link
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, light blue, green, pea green, red
  • Water in: 2 inches
  • Water out: 2 inches
  • Plugs: DP hex, DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 2"
  • Packaging: individual box or pallet

performance chart



Note that data results may slightly vary depending on components selection.

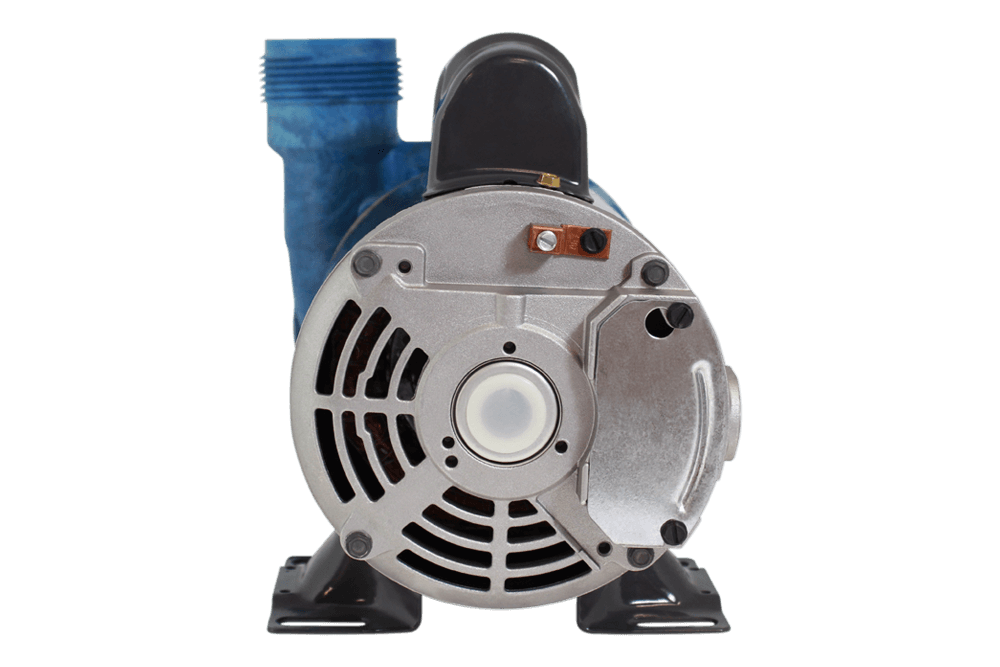

Circ-Master CMHP & CMCP




24-hour circulation pump

Circ-Master hp/cp pump, designed exclusively for spas, takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump on the spa industry.

Circ-Master pumps are powerful, efficient, high density filtration and quiet.

Increase efficiency:

  • Ideal for 24/7 circ pump applications
  • Single speed
  • Flow rate up to 40 GPM
  • 1 ½ " intake and discharge
  • Wet end available in center or side discharger configuration
  • Ajustable volute with 4 different positions
  • Up to 3 drain plugs available
  • 115V or 230V
  • 48 frame

Easily customizable to fit your needs:

  • Discharge can be oriented on 4 positions
  • Fits all requirements
  • Many options for the drain plug
  • Color can be customized
  • Many power cables type available according to your spa controls
  • Many options for the compression fitting configuration
  • Compact design
  • Open drip proof
  • cULus or cURus certified

CMHP dimensions

Note that dimensions may slightly vary depending on components selection. Biggest CMHP configuration illustrated above.



CMCP dimensions

Note that dimensions may slightly vary depending on components selection. Biggest CMCP configuration illustrated above.


CMHP and CMCP customization variables

  • Speeds: 1
  • HP: 1/15
  • Volts: 115 or 230
  • HZ: 60
  • Frame: 48
  • Water discharge location: top, right side, bottom or left side
  • Cable length: 36, 48, 60, 72, 96 or 120 inches
  • Connectors: QC, QCF, AMP, in.link or Nema
  • Seals: Viton, EPDM, Universeal
  • Wet end colors: black, blue, green, red
  • Water in: 1.5 inches
  • Water out: 1.5 inches
  • Plugs: DP hex, DP wing, Barb 3/8, Barb 1/4
  • Fittings: 2 x 1.5" or 2 x 2" (with adaptors)
  • Packaging: individual box or pallet

performance chart



Note that data results may slightly vary depending on components selection.
